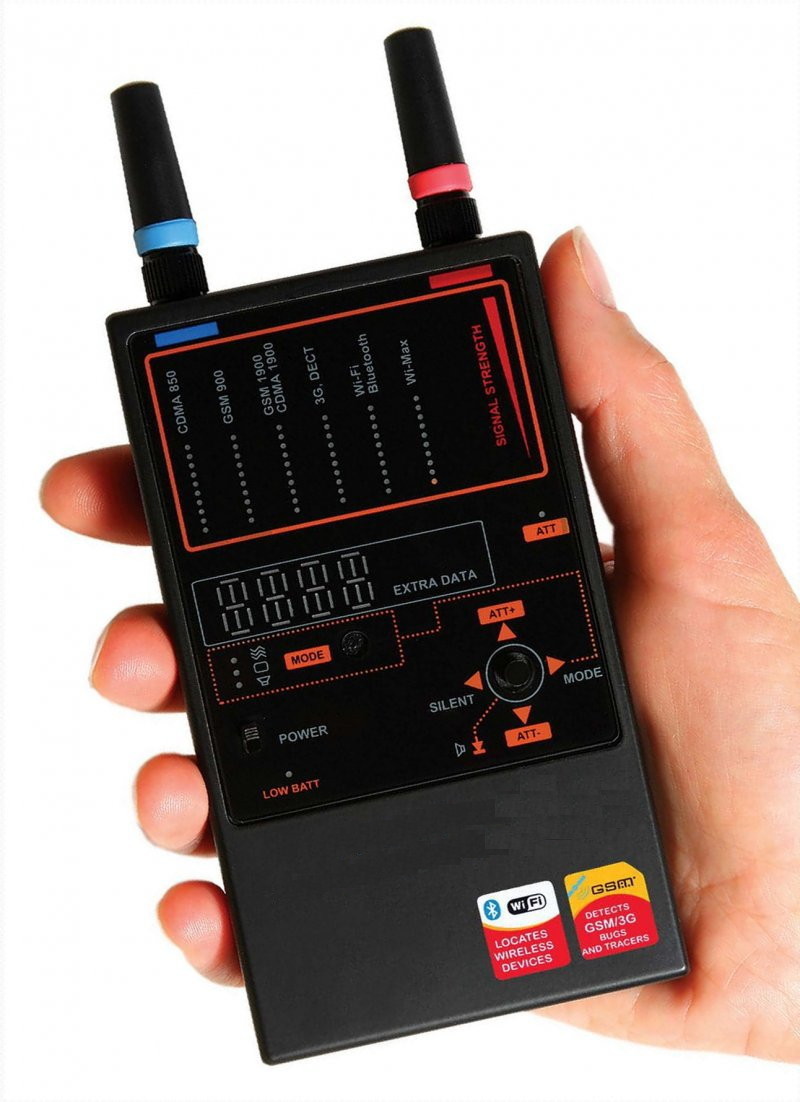

The PRO-DTECH II is a new bug detector technology which can be successfully used by engineers or counter surveillance specialists as a reliable tool for tracing different digital transmissions such as GSM, Bluetooth and other wireless transmissions.





The PRO-DTECH II is a new measuring device which can be successfully used by engineers or counter surveillance specialists as a reliable tool for tracing different digital transmissions such as GSM, Bluetooth and other wireless transmissions. The sensitivity of a common RF detector (bug detector) is spread along a wide frequency range, usually 3, or even 6-7 GHz. This means the common detector cannot detect such weak and non-continuous signals as Bluetooth, Wi-Fi or Wi-Max. Even more powerful signals like GSM-1800 are also hard to detect because of their low sensitivity at higher frequency ranges.

The only way to reliably detect wireless protocols is to use pre-selector chips (saw filters) which attenuate all other signals except the desired ones. This is the method implemented in the PRO-DTECH II which has 6 channels for different frequency ranges and can simultaneously detect 6 different kinds of transmissions at a distance much greater than any common RF detectors.

* Portable Device For The Inspection And Location Of Wireless Sources

* 6 Channels Of Detection For Different Kinds Of Protocols

* Detection Of GSM/CDMA/3G

* Detection Of Bluetooth/Wi-Fi/Wi-Max

* Can Be Used For Tracing Both Regular Sources And Illegal EavesdroppingDevices

* 6 Bar Graphs With 10-Segments Each, For Accurate Location Of RF Sources

* 4 Modes: Silent, Vibration, Visual And Listen

* 2 Levels Of Sensitivity (Attenuator)

* Extra Display Shows Probable Protocol

* Durable Metallic Body

* Microprocessor Controlled

* Setup Mode With Selection The Threshold Level For Vibration.

* Detect The Following Kinds Of Bugging Devices:

* GSM Baby-Monitors/GSM Alarm/GSM Bugs

* GSM/GPRS/EDGE/3G Video Cameras

* GSM Spy Phones

* GPS Trackers

* Bluetooth Bugging Devices

* Spy Phones With Bluetooth/Wi-Fi

* Wi-Fi/Wi-Max Bugging Devices

* Wireless Videocameras 2.4 Ghz

Includes:

* 2 Antennas

* 2 Batteries Size AAA

* Cleaning Cloth

* Detector

* Manual

* Screw Driver

FACT SHEET: PRO-DTECH II FREQUENCY DETECTOR

Technical Details:

* Bluetooth, Wi-Fi: 2400-2480

* CDMA: 824-849 MHz

* Wi-Max: 3000-7000 MHz

* Antenna: 2 Omni-Directional Antennas

* Box Size: 7 x 5 x 1.50

* Detection Distance: 1-10 Meters



Frequency Range:



* GSM: (DCS) 1710-1790 MHz

* GSM: 880-920 MHz



* Operation Time: 10-15 hours

* Power: 2 AAA

* Unit Size: 2.75 x 4.75 x .50

* WCDMA, 3G, GSM (PCS), DECT: 1920-2000 MHz

* Weight: 1.00
